Command Pattern

The Command Pattern is a behavioral design pattern that encapsulates a request as an object. This lets you parameterize actions, queue or log requests, and support undo/redo operations. It turns "do this" into a reusable, first-class object.

Think of a restaurant: you don't walk into the kitchen and cook your meal. You give your order (command) to a waiter (invoker), who passes it to the chef (receiver). The waiter doesn't need to know how to cook—they just deliver commands.

The Problem

Imagine you're building a text editor. Without the Command Pattern, your UI is tightly coupled to specific actions:

// Without Command Pattern - tightly coupled
class TextEditor {
    private StringBuilder text = new StringBuilder();

    public void boldButtonClicked() {
        // Direct action - no undo support
        text.insert(0, "<b>").append("</b>");
    }

    public void italicButtonClicked() {
        text.insert(0, "<i>").append("</i>");
    }

    public void undoClicked() {
        // How do we undo? We have no history! 😱
    }
}

Problems:

• No undo/redo: Actions are executed directly with no history

• Tight coupling: UI knows too much about implementation

• Hard to extend: Adding new actions requires modifying existing code

• No queuing: Can't schedule or batch operations

The Solution: Command Pattern

The Command Pattern encapsulates each action as an object with a common interface.

The pattern separates:

• What to do (Command)

• Who does it (Receiver)

• When to do it (Invoker)

How It Solves Each Problem

Problem	How Command Pattern Solves It
No undo/redo	Each command stores its previous state and implements undo(). A history stack tracks executed commands for easy reversal.
Tight coupling	The invoker (UI) only knows the Command interface—not the receiver or implementation details. You can swap commands without touching the UI.
Hard to extend	Adding a new action = adding a new Command class. No existing code changes. Open/Closed Principle in action.
No queuing	Commands are objects, so you can store them in queues, schedule them, log them, or even serialize them for later execution.

In essence, the Command Pattern turns verbs into nouns. Instead of calling light.on() directly, you create a LightOnCommand object. That object can be stored, passed around, undone, or replayed—giving you full control over when and how actions happen.

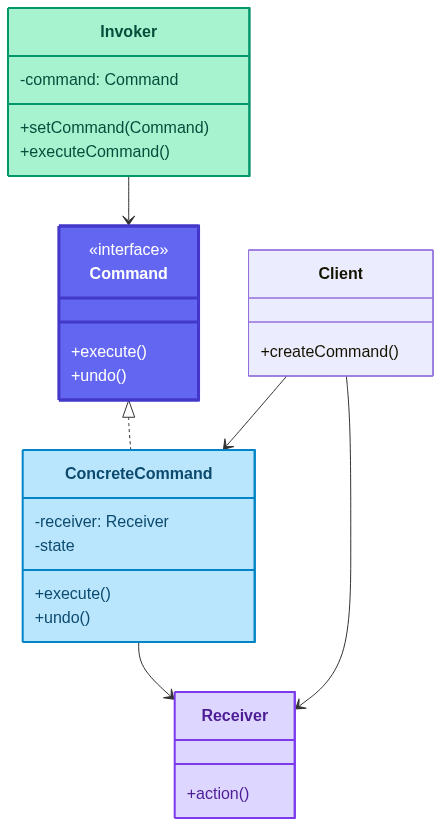

Key Components

1. Command: Interface declaring execute() and optionally undo()

2. ConcreteCommand: Implements the command, holds a reference to the receiver

3. Receiver: The object that performs the actual work

4. Invoker: Triggers the command (doesn't know how it works)

5. Client: Creates commands and assigns them to invokers

How It Solves the Problem

Real-World Implementation

Example 1: Smart Home Remote Control

// Command Interface
interface Command {
    void execute();
    void undo();
}

// Receiver - Light
class Light {
    private String location;

    public Light(String location) {
        this.location = location;
    }

    public void on() {
        System.out.println(location + " light is ON");
    }

    public void off() {
        System.out.println(location + " light is OFF");
    }
}

// Receiver - Fan
class Fan {
    private String location;
    private int speed = 0;

    public Fan(String location) {
        this.location = location;
    }

    public void high() {
        speed = 3;
        System.out.println(location + " fan is on HIGH");
    }

    public void medium() {
        speed = 2;
        System.out.println(location + " fan is on MEDIUM");
    }

    public void low() {
        speed = 1;
        System.out.println(location + " fan is on LOW");
    }

    public void off() {
        speed = 0;
        System.out.println(location + " fan is OFF");
    }

    public int getSpeed() {
        return speed;
    }
}

// Concrete Commands
class LightOnCommand implements Command {
    private Light light;

    public LightOnCommand(Light light) {
        this.light = light;
    }

    @Override
    public void execute() {
        light.on();
    }

    @Override
    public void undo() {
        light.off();
    }
}

class LightOffCommand implements Command {
    private Light light;

    public LightOffCommand(Light light) {
        this.light = light;
    }

    @Override
    public void execute() {
        light.off();
    }

    @Override
    public void undo() {
        light.on();
    }
}

class FanHighCommand implements Command {
    private Fan fan;
    private int prevSpeed;

    public FanHighCommand(Fan fan) {
        this.fan = fan;
    }

    @Override
    public void execute() {
        prevSpeed = fan.getSpeed();
        fan.high();
    }

    @Override
    public void undo() {
        switch (prevSpeed) {
            case 0: fan.off(); break;
            case 1: fan.low(); break;
            case 2: fan.medium(); break;
            case 3: fan.high(); break;
        }
    }
}

// No-Op Command (Null Object Pattern)
class NoCommand implements Command {
    @Override
    public void execute() { }

    @Override
    public void undo() { }
}

// Invoker - Remote Control
class RemoteControl {
    private Command[] onCommands;
    private Command[] offCommands;
    private Command undoCommand;

    public RemoteControl() {
        onCommands = new Command[7];
        offCommands = new Command[7];
        Command noCommand = new NoCommand();
        for (int i = 0; i < 7; i++) {
            onCommands[i] = noCommand;
            offCommands[i] = noCommand;
        }
        undoCommand = noCommand;
    }

    public void setCommand(int slot, Command onCommand, Command offCommand) {
        onCommands[slot] = onCommand;
        offCommands[slot] = offCommand;
    }

    public void onButtonPressed(int slot) {
        onCommands[slot].execute();
        undoCommand = onCommands[slot];
    }

    public void offButtonPressed(int slot) {
        offCommands[slot].execute();
        undoCommand = offCommands[slot];
    }

    public void undoButtonPressed() {
        System.out.println("--- UNDO ---");
        undoCommand.undo();
    }
}

// Client
public class SmartHomeDemo {
    public static void main(String[] args) {
        RemoteControl remote = new RemoteControl();

        Light livingRoomLight = new Light("Living Room");
        Fan ceilingFan = new Fan("Living Room");

        remote.setCommand(0, new LightOnCommand(livingRoomLight),
                            new LightOffCommand(livingRoomLight));
        remote.setCommand(1, new FanHighCommand(ceilingFan),
                            new NoCommand());

        remote.onButtonPressed(0);   // Living Room light is ON
        remote.offButtonPressed(0);  // Living Room light is OFF
        remote.undoButtonPressed();  // UNDO -> Living Room light is ON

        remote.onButtonPressed(1);   // Living Room fan is on HIGH
        remote.undoButtonPressed();  // UNDO -> Fan returns to previous speed
    }
}

Example 2: Text Editor with Undo/Redo

import java.util.Stack;

// Command Interface
interface TextCommand {
    void execute();
    void undo();
}

// Receiver
class TextDocument {
    private StringBuilder content = new StringBuilder();

    public void insert(int position, String text) {
        content.insert(position, text);
        System.out.println("Inserted: \"" + text + "\" -> " + content);
    }

    public void delete(int position, int length) {
        String deleted = content.substring(position, position + length);
        content.delete(position, position + length);
        System.out.println("Deleted: \"" + deleted + "\" -> " + content);
    }

    public String getContent() {
        return content.toString();
    }

    public int length() {
        return content.length();
    }
}

// Concrete Commands
class InsertCommand implements TextCommand {
    private TextDocument document;
    private String text;
    private int position;

    public InsertCommand(TextDocument document, int position, String text) {
        this.document = document;
        this.position = position;
        this.text = text;
    }

    @Override
    public void execute() {
        document.insert(position, text);
    }

    @Override
    public void undo() {
        document.delete(position, text.length());
    }
}

class DeleteCommand implements TextCommand {
    private TextDocument document;
    private String deletedText;
    private int position;
    private int length;

    public DeleteCommand(TextDocument document, int position, int length) {
        this.document = document;
        this.position = position;
        this.length = length;
    }

    @Override
    public void execute() {
        deletedText = document.getContent().substring(position, position + length);
        document.delete(position, length);
    }

    @Override
    public void undo() {
        document.insert(position, deletedText);
    }
}

// Invoker with History
class TextEditor {
    private TextDocument document = new TextDocument();
    private Stack<TextCommand> undoStack = new Stack<>();
    private Stack<TextCommand> redoStack = new Stack<>();

    public void executeCommand(TextCommand command) {
        command.execute();
        undoStack.push(command);
        redoStack.clear();
    }

    public void undo() {
        if (!undoStack.isEmpty()) {
            TextCommand command = undoStack.pop();
            command.undo();
            redoStack.push(command);
        }
    }

    public void redo() {
        if (!redoStack.isEmpty()) {
            TextCommand command = redoStack.pop();
            command.execute();
            undoStack.push(command);
        }
    }

    public TextDocument getDocument() {
        return document;
    }
}

// Client
public class TextEditorDemo {
    public static void main(String[] args) {
        TextEditor editor = new TextEditor();
        TextDocument doc = editor.getDocument();

        editor.executeCommand(new InsertCommand(doc, 0, "Hello"));
        editor.executeCommand(new InsertCommand(doc, 5, " World"));
        editor.executeCommand(new InsertCommand(doc, 11, "!"));

        System.out.println("\n--- Undo ---");
        editor.undo();
        editor.undo();

        System.out.println("\n--- Redo ---");
        editor.redo();

        System.out.println("\nFinal: " + doc.getContent());
    }
}

Example 3: Macro Commands (Composite)

import java.util.ArrayList;
import java.util.List;

// Macro Command - executes multiple commands
class MacroCommand implements Command {
    private List<Command> commands = new ArrayList<>();

    public void addCommand(Command command) {
        commands.add(command);
    }

    @Override
    public void execute() {
        for (Command command : commands) {
            command.execute();
        }
    }

    @Override
    public void undo() {
        // Undo in reverse order
        for (int i = commands.size() - 1; i >= 0; i--) {
            commands.get(i).undo();
        }
    }
}

// Usage
public class MacroDemo {
    public static void main(String[] args) {
        Light light = new Light("Living Room");
        Fan fan = new Fan("Living Room");

        MacroCommand partyMode = new MacroCommand();
        partyMode.addCommand(new LightOnCommand(light));
        partyMode.addCommand(new FanHighCommand(fan));

        System.out.println("--- Party Mode ON ---");
        partyMode.execute();

        System.out.println("\n--- Party Mode OFF (Undo) ---");
        partyMode.undo();
    }
}

Workflow Diagram

Real-World Use Cases

• GUI Buttons & Menus: Each button triggers a command object

• Undo/Redo Systems: Text editors, graphic tools, IDEs

• Transaction Systems: Database operations, banking

• Task Scheduling: Job queues, cron-like systems

• Macro Recording: Record and replay sequences of actions

• Game Development: Player actions, replay systems

• Networking: Request queuing, retry mechanisms

When to Use the Command Pattern

✅ Use When

1. Undo/Redo Required: You need to reverse operations

2. Decouple Invoker & Receiver: UI shouldn't know implementation details

3. Queue Operations: Schedule, log, or batch commands

4. Macro Support: Combine multiple commands into one

5. Callback Replacement: Need object-oriented callbacks

❌ Avoid When

1. Simple Actions: Overhead isn't justified for trivial operations

2. No History Needed: Direct method calls are simpler

3. Performance Critical: Command objects add memory overhead

Benefits

1. Decoupling: Invoker and receiver are independent

2. Undo/Redo: Easy to implement with command history

3. Extensibility: Add new commands without changing existing code

4. Composability: Combine commands into macros

5. Logging & Auditing: Commands can be logged for replay

Drawbacks

1. Class Explosion: Each action needs its own command class

2. Complexity: More classes and indirection

3. Memory Overhead: Storing command history consumes memory

Command vs Strategy Pattern

Aspect	Command	Strategy
Purpose	Encapsulate request	Encapsulate algorithm
Undo	Supports undo/redo	No undo support
State	Often stateful	Usually stateless
Use Case	Actions, transactions	Interchangeable behaviors

Best Practices

1. Keep Commands Small: One action per command

2. Store State for Undo: Save previous state before executing

3. Use Null Object: NoCommand avoids null checks

4. Consider Macro Commands: Group related commands

5. Immutable Commands: Avoid modifying command state after creation

6. Limit History Size: Prevent memory leaks in undo stacks

Conclusion

The Command Pattern transforms actions into objects, enabling powerful features like undo/redo, queuing, logging, and macro recording. It decouples the requester from the executor, making your code flexible and extensible.

Remember: When in doubt, command it out! 🎮

---

🎯 Key Takeaway

The Command Pattern is about turning actions into objects. When you need undo, queuing, or decoupling—command it!

---

Interviewer: "What happens if your code crashes production?" Candidate: "I cry." Interviewer: "And if you used the Command Pattern?" Candidate: "I cry... then hit undo." 😂

Happy Commanding! 🎮✨
